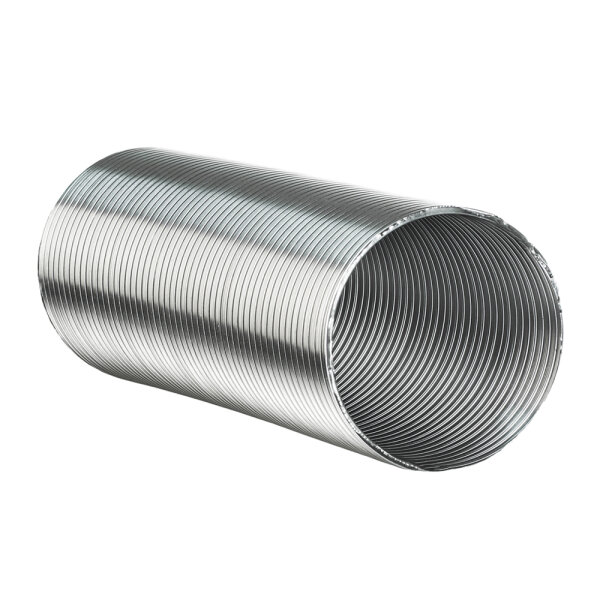

The aluminium flex duct Dalap ALUDAP with a diameter of 200 mm and a maximum length of 6000 mm is used for shorter exhaust air runs in small and medium-sized rooms with complex layouts (e.g. kitchens, bathrooms, toilets, shops, warehouses, greenhouses, lofts or suspended ceilings). The flex duct is also suitable for connecting individual components to other air-handling systems. These include, for example, inline duct fans and exhaust air hoods, various ventilation components, ventilation grilles or valve diffusers.
The aluminium flex duct Dalap ALUDAP can easily be connected to fans and ventilation grilles.
Advantages of the flexible Dalap ALUDAP duct, Ø 200 mm / length 6 m
- Suitable for air distribution over shorter distances or for connecting various components to a ventilation system
- easy to bend, shape, extend and cut to length as required
-
low weight and high durability
- rated for temperatures from -30 to +250 °C
-
simple installation and handling even in confined or difficult-to-access spaces
- compatible with pipework and components of the same diameter
-
custom manufacture from high-quality aluminium strip available
Long-lasting and lightweight air ducts from our own production
The flexible air duct is made from a 0.07 mm thick aluminium strip that is firmly joined using a specialist machine. Thanks to the material used, the ALUDAP is extremely lightweight and at the same time very long-lasting compared to air ducts made from ALU foil. With a maximum air velocity of 25 m/s and a pressure of 2000 Pa, it can safely be exposed to temperatures from -30 to +250 °C.
The flexible aluminium duct Dalap ALUDAP can be shaped, extended and installed as required.
Simple handling and installation
The Dalap ALUDAP 200/6 is supplied in a compressed state, i.e. at approximately 30% of its final length. Maximum length is best achieved by two persons carefully rotating it counter-clockwise. Once extended, this metal duct can be bent, shaped and cut to length very easily (e.g. with a craft knife). For securing, we recommend the use of a hose clamp or aluminium tape or alternatively PVC tape.
To connect an additional duct, an internal connector is required, which can be found in the accessories.
Technical data
| Diameter [mm] |
200 |
| Length [m] |
6 |
| Max. pressure [Pa] |
2000 |
| Weight [kg] |
1,24 |
| Dimensions [mm] |
see image |
| Material |
Aluminium |
| Fire resistance |
yes |
| Operating temperature [°C] |
-30 to +250 |
| Colour |
silver |
| Application |
indoor and outdoor |
| Air ducts |
yes |
| Mounting |
wall / ceiling / suspended ceiling |
| Version |
Flexible ducts |
| Model |
ALUDAP 200/6 |
