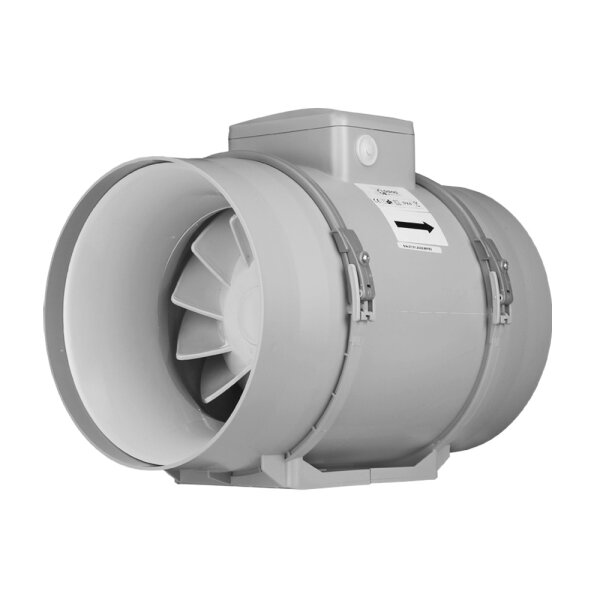

Take advantage of the high performance and low noise level of the professional inline duct fan Dalap AP PROFI 200. The fan is designed for air extraction from small and medium-sized rooms, such as bathrooms, showers, kitchens, greenhouses, cinemas, weekend houses, shops and more. It is designed for easy removal for maintenance, for which you need almost no tools. Max. length of the ventilation ducts is 8 to 10 metres.
Advantages of the inline duct fan Dalap AP Profi 200
-
high airflow of 1040 m3/h even at a very low noise level
- motor with ball bearing – service life up to 40,000 hours
- smooth operation and reliability
- almost tool-free maintenance even without dismantling the ventilation system
- compatible with all round pipes with a diameter of 200 mm
- installation in rigid as well as flexible ventilation ducts
Designed for easy removal
Thanks to the simple disassembly of the fan, you can first complete the ventilation system and then insert the fan turbine. It's simple and needs almost no tools! First remove the securing screws of the fasteners and open the clamping straps. Then remove the turbine unit from the housing.
Motor with ball bearing
The single-phase motor with ball bearing has two power levels, which you can select using a switch. The motor is equipped with an overheating protection with automatic reset. The protection class is IPX4.
Installation anywhere in the ventilation system
The fan can be installed at any point in the pipe system – vertically or horizontally. At the same time, several inline duct fans in series can also be installed to increase the pressure build-up and thus the volume of transported air.
For pipe systems from 8 to 10 metres
Thanks to its high pressure output, the inline duct fan Dalap AP PROFI is suitable for moving air in a pipe with a maximum length of 8 to 10 metres.
Sufficient power for extraction through filters
The inline duct fan is designed to transport air that is clean and free of mechanical dirt or grease, as the impeller or the fan itself could otherwise be damaged. If the fan needs to be used, for example, in the kitchen or in other places with greasy air, it makes sense to install a grease filter in front of the unit. The same applies in workshops, warehouses, garages or anywhere else where the air contains contaminants of various kinds. Here, a filter appropriate to the filter class should be installed in front of the fan.
Accessories
A necessary part for connecting the fan is a connecting cable, which must be purchased separately.
External modules that can enhance the fan with a timer or a humidity sensor.
Connection
Difficulty level: requires expertise in electrical engineering
Tools required: small flat-head screwdriver
Time: 15 minutes
1. Remove the cover of the terminal box, here you will find 2 terminals
2. Each terminal is marked with a letter: from the left the "N" terminal – for connecting the neutral conductor (blue cable)
3. Next you will find the terminal "L" – for connecting the phase conductor.
The two power levels of the fan are controlled via the built-in switch.
Also feel free to check out our detailed connection instructions for an inline duct fan!
Technical data
| Diameter [mm] |
200 |
| Air flow [m³/h] |
830 / 1040 |
| Static pressure [Pa] |
275 / 349 |
| Power consumption [W] |
76 / 108 |
| Speed [min] |
1918 / 2380 |
| Rated current [A] |
0,34 / 0,48 |
| Sound pressure [dB/3m] |
39 / 45 |
| Protection class [IP] |
X4 |
| Voltage [V] |
230 |
| Frequency [Hz] |
50 |
| Max. temperature [°C] |
60 |
| Weight [kg] |
3.95 |
| Dimensions [mm] |
see image |
| Application |
Bars, cafes, office, garage, workshop |
| Ball bearing |
yes |
| Number of speeds |
2 |
| Max. noise level [dB] |
45 |
| Operating temperature [°C] |
-25 to +60 |
| Colour |
grey |
| Control |
manual |
| Marking [CE] |
CE |
| Application |
for air extraction |
| Mounting |
into the ventilation duct |
| Version |
with speed switch |
| Service life |
40,000 hours |
| Fan version |
Axial |
| Model |
AP PROFI 200 |
