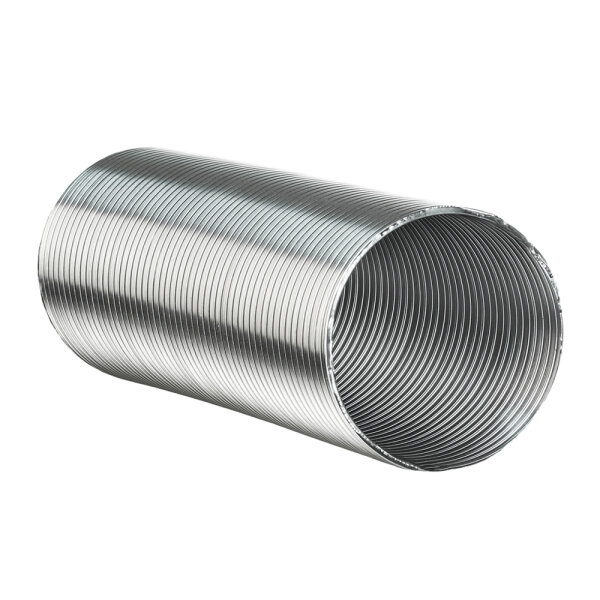

The Dalap ALUDAP aluminium flex duct with a diameter of 150 mm and a maximum length of 1000 mm is used for shorter exhaust air runs in small and medium-sized rooms with complex layouts (e.g. kitchens, bathrooms, toilets, shops, warehouses, greenhouses, lofts or suspended ceilings). The flex duct is also suitable for the connection of individual components to other ventilation systems. These include, for example, inline duct fans and exhaust air hoods, various ventilation components, ventilation grilles or valve caps.
The Dalap ALUDAP aluminium flex duct can easily be connected to fans and ventilation grilles.
Advantages of the flexible Dalap ALUDAP duct, Ø 150 mm / length 1 m
- Suitable for air distribution over shorter distances or for connecting various components to a ventilation system
- easy to bend, shape, stretch and shorten as required
-
low weight and high durability
- designed for temperatures from -30 to +250 °C
-
simple installation and handling even in confined or hard-to-reach spaces
- compatible with pipework and components of the same diameter
-
custom manufacture from high-quality aluminium strip available
Long-lasting and lightweight air ducts from our own production
The flexible air duct consists of a 0.07 mm thick aluminium strip that is firmly joined using a specialist machine. Thanks to the material used, the ALUDAP is extremely lightweight and at the same time very durable compared to air ducts made from ALU foil. With a maximum air velocity of 25 m/s and a pressure of 2000 Pa, it can safely be exposed to temperatures from -30 to +250 °C.
The flexible aluminium duct Dalap ALUDAP can be shaped, stretched and installed as required.
Simple handling and installation
The Dalap ALUDAP 150/1 is supplied in a compressed state, i.e. at approximately 30% of its final length. The maximum length is best achieved by two people carefully rotating it counter-clockwise. Once stretched, this metal duct can be bent, shaped and shortened very easily (e.g. with a utility knife). For securing, we recommend the use of a hose clamp or aluminium tape or alternatively PVC tape.
To connect an additional duct, an internal connector is required, which can be found in the accessories.
Technical data
| Diameter [mm] |
150 |
| Length [m] |
1 |
| Max. pressure [Pa] |
2000 |
| Weight [kg] |
0,17 |
| Dimensions [mm] |
see image |
| Material |
Aluminium |
| Fire resistance |
yes |
| Operating temperature [°C] |
-30 to +250 |
| Colour |
silver |
| Application |
indoor and outdoor |
| Air ducts |
yes |
| Mounting |
wall / ceiling / suspended ceiling |
| Version |
Flexible ducts |
| Model |
ALUDAP 150/1 |
