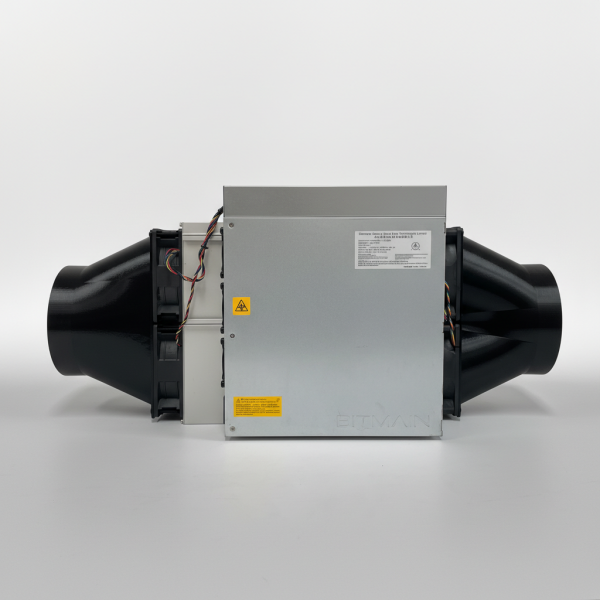

Two fan shrouds in one set — one for the intake side, one for the exhaust side of your miner. Direct the entire airflow through duct hoses exactly where you need it: outside, into an adjacent room, or for heat recovery during winter.
At a Glance
Contents: 2× fan shroud, 2× screw set (8 screws each), 2× hose clamp
Sizes: Available in 6 inch (150mm) or 8 inch (200mm)
Use case: Intake + exhaust — cover both sides simultaneously
Installation: Remove fan grille, place shroud over fan, secure with 8 screws, attach duct hose and tighten clamp
Fans: Stay mounted — the shroud fits over the existing fan
What You Need This Set For
In standard operation, your miner blows hot exhaust air freely into the room — and draws in unfiltered room air on the other side. With the 2-piece set, you connect both sides to duct hoses. This lets you supply fresh air from outside and direct the heat wherever you need it — outdoors, into another room, or to supplement heating on cold days.
6 Inch or 8 Inch?
6 inch (150mm) is more compact and works for most setups with short, direct duct runs.
8 inch (200mm) offers less airflow resistance — fans run quieter, work less hard and last longer. Recommended for duct runs over 2 meters, bends or continuous operation.
Compatible Miners
Fits all Antminer models with 2× 140mm fans: S21+, S21 Pro, S21 XP, S23.
Not compatible with S19, S21 (base model) or older S19 variants (different fan size, 120mm) — find the matching set here.
Material and Quality
Made from PETG — heat-resistant, durable, and printed as solid material. Designed and manufactured in Germany.
Frequently Asked Questions
Can I cover just one side?
Yes, you can start with just the exhaust side and install the second shroud later. If you only need one side, the single shroud is the more affordable option.
Which duct hose do I need?
A flexible aluminum duct hose matching your chosen size — 150mm diameter for 6 inch, 200mm for 8 inch. Available in our hose selection or at your local hardware store.
Does this set fit the standard S21?
No. The Antminer S21 (base model) has 120mm fans, while the S21+/Pro/XP series uses 140mm. For the standard S21 you need the S19/S21 set.
Does this set fit Whatsminer models?
No. While Whatsminer models also use 140mm fans, they have a different case design. Find the Whatsminer set here.
