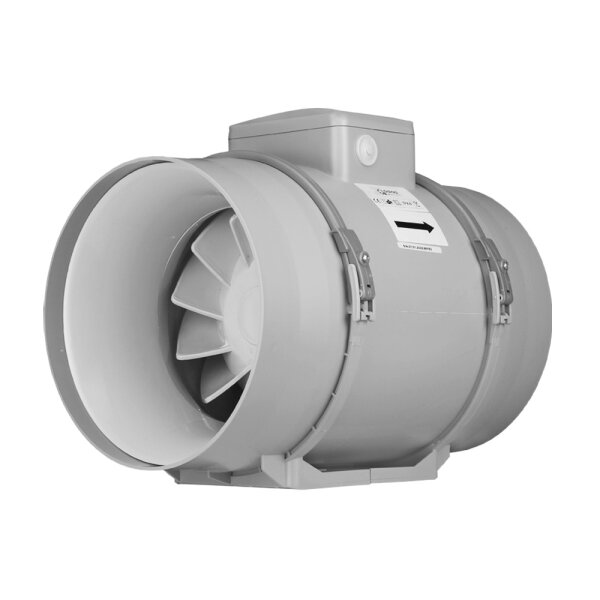

Take advantage of the high performance and low noise level of the professional Dalap AP PROFI 200 Z inline duct fan with run-on timer. The fan is designed for air extraction from small and medium-sized rooms, such as bathrooms, showers, kitchens, greenhouses, cinemas, weekend houses, shops and others. The special housing shape allows for easy installation or maintenance of the unit, for which you need almost no tools. Suitable for ventilation ducts with a length of max. 8 to 10 metres.
Advantages of the Dalap AP PROFI 200 Z inline duct fan
- Extraction of high air volumes of 1040 m³/h at a very low noise level
-
Run-on timer, adjustable between 2 and 30 minutes
- Motor with ball bearing for continuous operation of 40,000 hours
- smooth running and reliability
-
almost tool-free maintenance even without dismantling the ventilation system
-
compatible with all round ducts of 200 mm diameter
- installation in rigid as well as flexible ventilation ducts
Designed for easy installation and removal
Thanks to the fan's easy disassembly, you can first complete the ventilation system with the fan's housing unit and later insert the fan's turbine unit. It's simple and requires almost no tools! First remove the securing screws of the fasteners and open the clamps. Then remove the turbine unit from the housing.
Motor with ball bearing
The single-phase motor with ball bearing has two power levels, which you can select using a switch. The motor is equipped with overheating protection with automatic reset. Protection class is IPX4.
Installation anywhere in the ventilation system
The fan can be installed at any point in the duct system – vertically or horizontally. At the same time, several inline duct fans can also be installed in series to increase the pressure build-up and thus the volume of air transported.
For duct systems of 8 to 10 metres
Thanks to its high pressure output, the Dalap AP PROFI inline duct fan is suitable for moving air through a duct with a maximum length of 8 to 10 metres.
Setting the run-on timer
The run-on electronics delay the switching off of the unit, adjustable between 2 and 30 minutes. Use a small screwdriver to turn the adjustment wheel on the fan control. Handle the wheel carefully, as it can otherwise be damaged.
Connection
Difficulty level: requires knowledge of electrical engineering
Tools required: small flat-head screwdriver
Time: 20 minutes
1. Open the connection box – you will see the electronics with a 4-pin terminal block.
2. The first terminal is marked "L", the second "LT", the third "L1" and the fourth "N".
3. In our videos you will find a detailed guide and a wiring diagram. A manual is included with every fan.
If you are not sure how to connect the fan with a timer in the bathroom or toilet, you should have the work carried out by a professional.
If you nevertheless wish to connect the fan yourself, we recommend reading the wiring instructions for the duct fan with run-on timer.
Incorrect connection poses a risk of accident through electric shock or damage to the fan!
Sufficient power for extraction through filters
The inline duct fan is intended to transport air that is clean and free of mechanical dirt or grease, as otherwise the impeller or the fan itself could be damaged. If the fan needs to be used, for example, in the kitchen or in other locations with grease-laden air, it makes sense to install a grease filter upstream of the unit. The same applies in workshops, warehouses, garages or anywhere the air contains contaminants of various kinds. Here, a filter matching the filter class should be installed upstream of the fan.
Accessories
For direct connection of the fan to the mains socket, a supply cable is required.
Technical data
| Diameter [mm] |
200 |
| Air flow [m³/h] |
830 / 1040 |
| Static pressure [Pa] |
275 / 349 |
| Power consumption [W] |
76 / 108 |
| Speed [min] |
1915 / 2380 |
| Rated current [A] |
0,34 / 0,48 |
| Sound pressure [dB/3m] |
39 / 45 |
| Protection class [IP] |
X4 |
| Voltage [V] |
230 |
| Frequency [Hz] |
50 |
| Max. temperature [°C] |
60 |
| Weight [kg] |
4 |
| Dimensions [mm] |
see image |
| Ball bearing |
yes |
| max. noise level [dB] |
45 |
| Colour |
grey |
| Timer |
yes |
| Marking [CE] |
CE |
| Application |
for air extraction |
| Mounting |
into the ventilation duct |
| Version |
with timer |
| Service life |
40,000 hours |
| Fan type |
Axial |
| Model |
AP PROFI 200 Z |
